The PDW Drive Pin is a compact, high-performance fastener engineered for powder-actuated and gas-actuated tools used across demanding construction and industrial environments. Featuring a smooth shank and a precisely formed conical washer, this mini drive pin nail delivers consistent seating depth and a secure, vibration-resistant hold — even in hard concrete and structural steel substrates.
The integrated conical washer is not a decorative element — it serves a critical mechanical function. As the pin is driven, the washer compresses against the base material, distributing load evenly and preventing pull-through in thinner or more brittle substrates. This makes the PDW drive pin particularly well-suited for electrical conduit mounting, cable tray support, insulation board fastening, and light structural attachments where point loading would otherwise cause damage or failure.
Each PDW drive pin is cold-forged from high-carbon steel and finished with a uniform zinc plating that meets international corrosion-resistance standards. At Jinhow, dimensional consistency is held to tight tolerances across every production batch — ensuring that your power-actuated tool cycles reliably without misfires, jamming, or incomplete drives. Whether you're running a Hilti, Simpson, or compatible tool on a large-scale project, these pins are engineered to perform shot after shot.
The PDW drive pin with conical washer is widely used in construction, industrial installation, shipbuilding, power generation facilities, and mining infrastructure — anywhere a fast, reliable mechanical anchor into hard substrates is required.
Jinhow supports full OEM/ODM cooperation on drive pins, including custom lengths, coatings, and private-label packaging. Contact us to discuss project-specific specifications or distributor pricing.

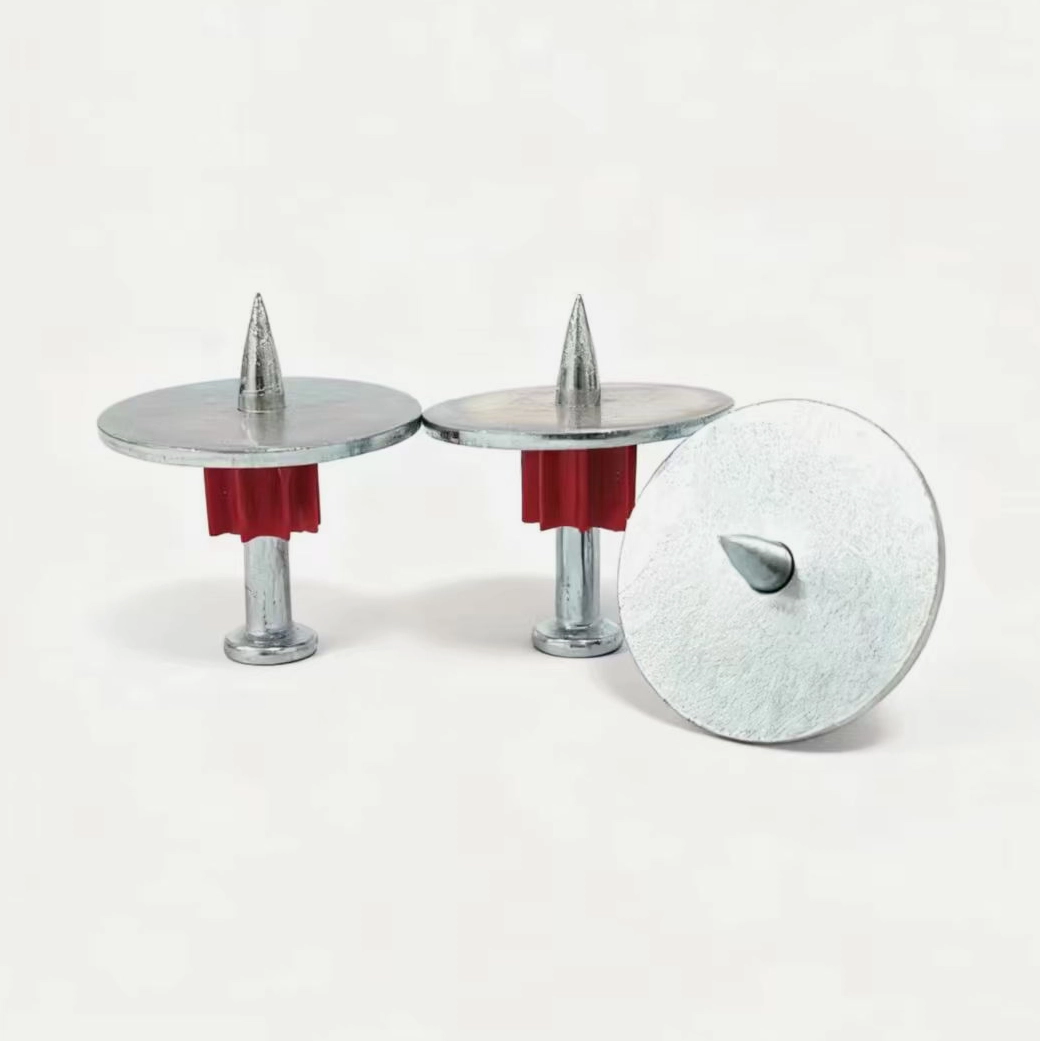

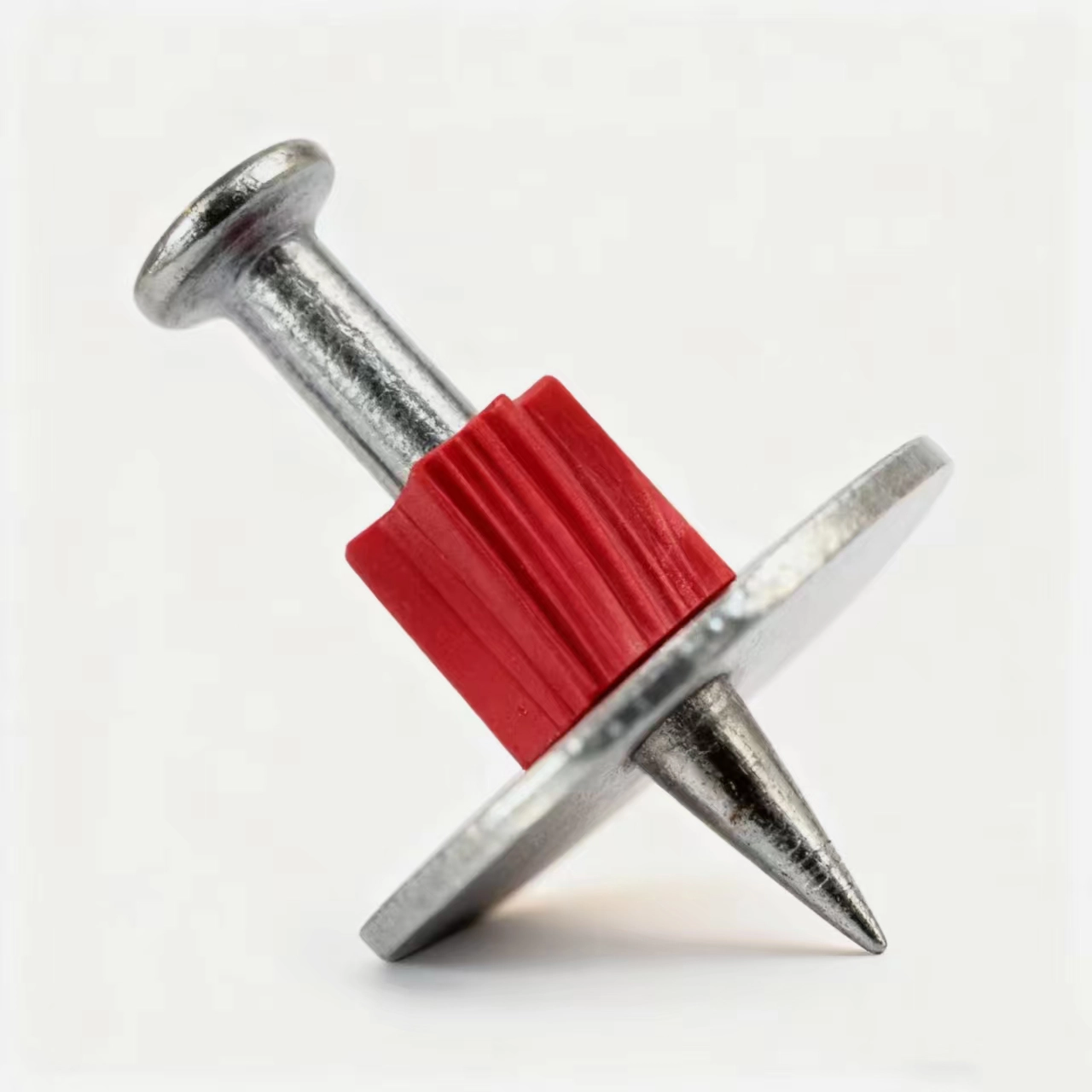

Product Name: PDW Drive Pin (Mini Drive Pin Nails with Conical Washer)
Shank Type: Smooth shank for consistent penetration depth and reliable ejection from powder-actuated tools
Material: High-strength carbon steel, heat-treated for hardness — suitable for driving into concrete, steel, and masonry without deformation
Finish: Zinc plated for corrosion resistance, extending service life in humid or outdoor environments
Head Diameter: 7.6 mm — the conical washer distributes load evenly across the substrate, reducing surface cracking and improving holding strength
Shank Diameter: 3.7 mm — compact profile designed for use in tight installation spaces typical of ceiling and partition work
Washer Type: Conical washer integrated design; keeps the nail aligned during firing and prevents pull-through on thinner base materials such as metal track or conduit clips
Compatibility: Compatible with standard powder-actuated nail guns and power-load fastening tools; suitable for strip-loaded and single-shot configurations
Packing: Box packing + carton + pallets — packaging designed for safe bulk shipping and easy jobsite dispensing
MOQ: 5,000 boxes — available for OEM/ODM orders with custom branding, length variations, and private-label packaging
Construction
Installation
Ship-building
Power Generation
Mines
Built to industrial standards, carefully selected high wear-resistant alloys and precision transmission structures, suitable for fastening needs in multiple scenarios such as wood, metal, and building materials, with durability verified by the international market.
Support full dimensional customization: Gun body color, brand logo, interface specifications, and safety protection functions can be customized according to foreign trade orders, matching different national industry standards and customer brand demands; Provide OEM/ODM cooperation, exclusive docking from design to mass production, and quickly respond to personalized orders.
Deeply cultivating the foreign trade market, our products have passed international certifications such as CE, UL, GS, etc., and are exported to over 50 countries and regions worldwide in compliance. Having comprehensive cross-border supply chain services, supporting multilingual manuals, customized packaging, and fast logistics, helping partners easily expand overseas business, showcasing China's manufacturing strength and customization advantages.
Q.Who are we?
We are based in Zhejiang, China, start from 2007, sell to Western Europe(11.11%), Eastern Asia(11.11%), Mid East(11.11%), Oceania(11.11%), Africa(11.11%), Southeast Asia(11.11%), Eastern Europe(11.11%), South America(11.11%), North America(11.11%). There are total about 11-50 people in our office.
Q.Who are we?
We are based in Zhejiang, China, start from 2007, sell to Western Europe(11.11%), Eastern Asia(11.11%), Mid East(11.11%),Oceania(11.11%), Africa(11.11%), Southeast Asia(11.11%), Eastern Europe(11.11%), South America(11.11%), North America(11.11%). There are total about 11-50 people in our office.
Q.Who are we?
We are based in Zhejiang, China, start from 2007, sell to Western Europe(11.11%), Eastern Asia(11.11%), Mid East(11.11%), Oceania(11.11%), Africa(11.11%), Southeast Asia(11.11%), Eastern Europe(11.11%), South America(11.11%), North America(11.11%). There are total about 11-50 people in our office.
When fastening to concrete, steel, or masonry, the choice of pin is never trivial. The Mini Drive Pin Nails with Conical Washer — the PDW series — are engineered to answer a specific and common challenge on job sites: how do you secure a fastener quickly and reliably without the washer slipping, rotating, or losing contact with the base material?
The answer is the conical washer. Unlike a flat washer, the conical (or cupped) design grips the surface at an angle, distributing load evenly across the contact point and reducing the risk of pull-through under dynamic loads. This makes it especially effective in applications involving vibration — electrical conduit runs, ductwork supports, and lightweight structural clips in industrial and commercial construction.
The PDW drive pin is manufactured from high-carbon steel, then zinc-plated for corrosion resistance across a range of indoor and outdoor environments. Every dimension matters when working with powder-actuated tools, and the PDW's specifications are designed for consistent, repeatable results:
Shank diameter: 3.7 mm — optimized for penetration without compromising lateral strength
Head diameter: 7.6 mm — sized to seat the conical washer flush and stable
Smooth shank — enables clean, full-depth penetration in a single drive, reducing the chance of deflection or double-strikes
Zinc-plated finish — provides a reliable barrier against surface oxidation during storage and in service
These aren't arbitrary numbers. They reflect years of real-world feedback from contractors working across construction, installation, shipbuilding, and power generation — exactly the industries where downtime from a failed fastener is never acceptable.
The PDW pin is purpose-built for use with powder-actuated fastening systems (also known as power-actuated tools, or PATs). These tools drive fasteners using controlled explosive charges, delivering the force needed to penetrate hard base materials in a fraction of a second.
For the pin to perform, it must be dimensionally consistent across every unit in the box. A pin that's even slightly out of tolerance can cause misfires, incomplete seating, or tool jams — all costly on a production schedule. Our manufacturing process holds tight dimensional tolerances on every batch, and each box undergoes quality inspection before packing.
Whether you're using a direct-drive or indirect-drive tool, the PDW is compatible with the standard magazine formats used by major tool brands, making it easy to integrate into your existing fastening workflow.
Not every concrete nail is suitable for every substrate. The PDW Mini Drive Pin Nails with Conical Washer are ideally matched to:
Concrete and masonry — standard and lightweight concrete, hollow-core slabs, and CMU block walls where a broad, stable bearing surface is needed.
Structural steel — decking, beam flanges, and steel stud track where the conical washer prevents the pin head from sinking into the material surface.
Mixed substrate applications — common in fit-out and MEP (mechanical, electrical, plumbing) installation work, where installers move rapidly between different base materials on the same project.
For very hard concrete or high-density steel, we recommend discussing the appropriate powder load strength and pin length with our technical team before placing a bulk order — a small consultation upfront saves significant rework later.
We support OEM and ODM arrangements, including custom packaging with your brand identity, mixed-pallet configurations for mixed-product orders, and multilingual documentation for markets across Europe, the Middle East, Southeast Asia, and the Americas.
If you're evaluating suppliers or comparing specifications, we're happy to provide samples prior to an order commitment. Reach out through the contact form below, and our team typically responds within one business day.
